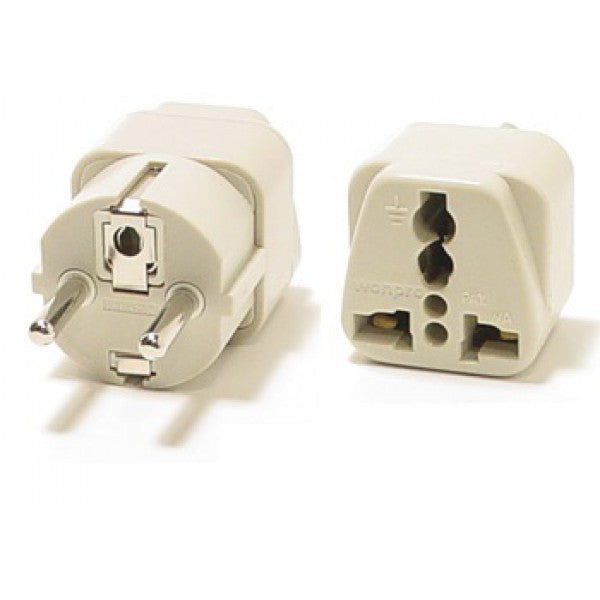

Universal Grounded Travel Plug Adapter For Europe (Schuko Type E/F)
Type E is primarily used in France, Belgium, Poland, Slovakia, the Czech Republic, Tunisia and Morocco.
France, Belgium and some other countries have standardized on a socket which is different from the CEE 7/4 socket (type F) that is standard in Germany and other continental European countries. The reason for incompatibility is that grounding in the E socket is accomplished with a round male pin, which is permanently mounted in the socket. This earth pin is 14 mm long and has a diameter of 4.8 mm. The plug itself is similar to C except that it is round and has the addition of a female contact to accept the socket’s grounding pin. The plug has two 4.8 mm round pins, measuring 19 mm in length on centres spaced 19 mm apart. The centre-to-centre distance between the female contact and the middle of the imaginary line connecting the two power pins is 10 mm.
In order to bridge the differences between sockets E and F, the CEE 7/7 plug was developed (see photo on the left): it has grounding clips on both sides to mate with the type F socket and a female contact to accept the grounding pin of the type E socket. The original type E plug, which does not have grounding clips, is no longer used, although very rarely it can still be found on some older appliances. Note that the CEE 7/7 plug is polarised when used with a type E outlet. The plug is rated at 16 amps. Above that, equipment must either be wired permanently to the mains or connected via another higher power connector such as the IEC 60309 system. A type C plug fits perfectly into a type E socket. The socket is recessed by 15 mm, so partially inserted plugs do not present a shock hazard.
- 10~16A/250V
- 4.8 mm, 4.8 mm prongs
- Insulated Voltage - Proof: 3KV
- CE Approved
- RoHS compliant
